X-Mid 2P

X-Mid 2P Tent

Category: Tag:

Description

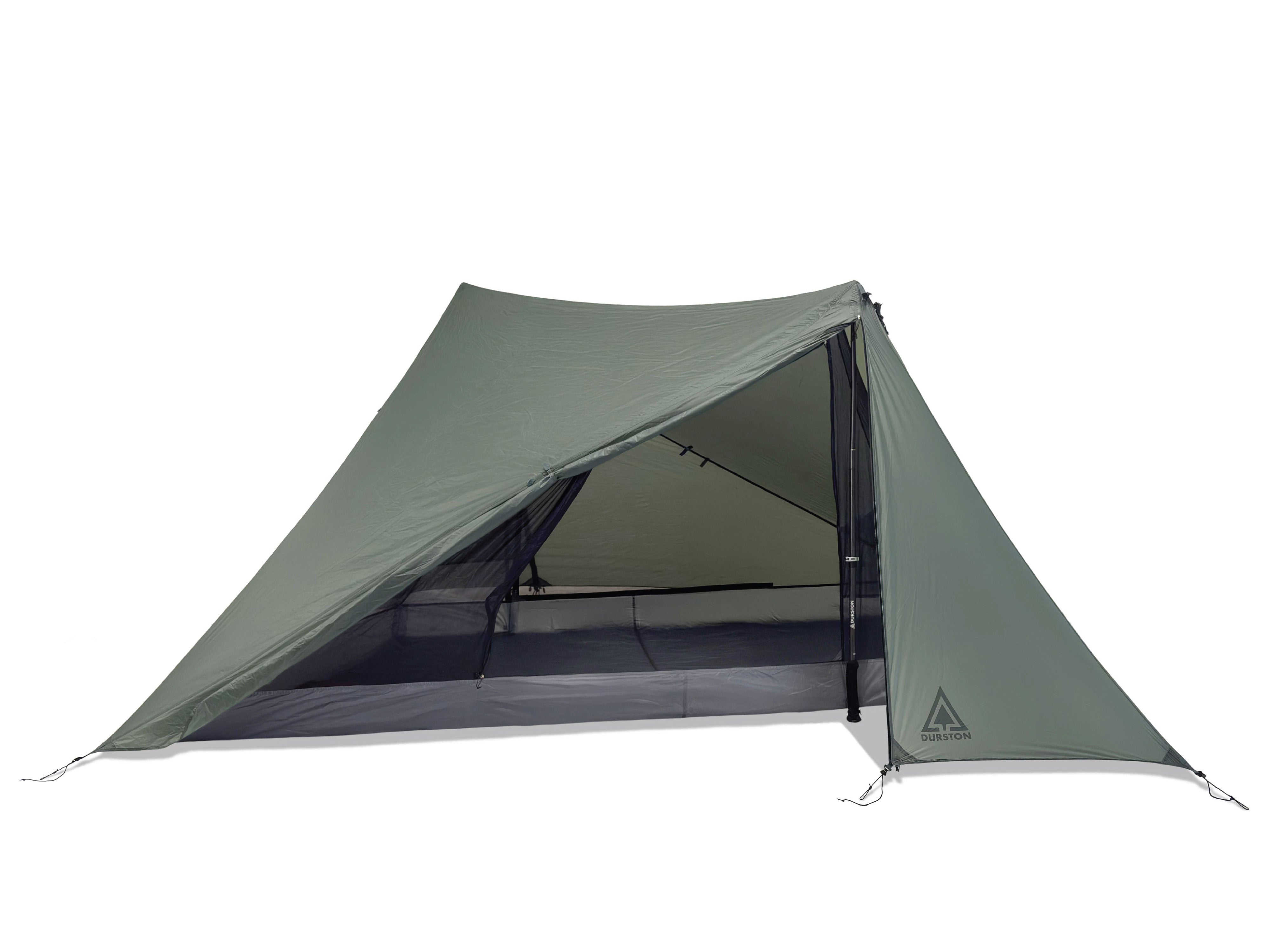

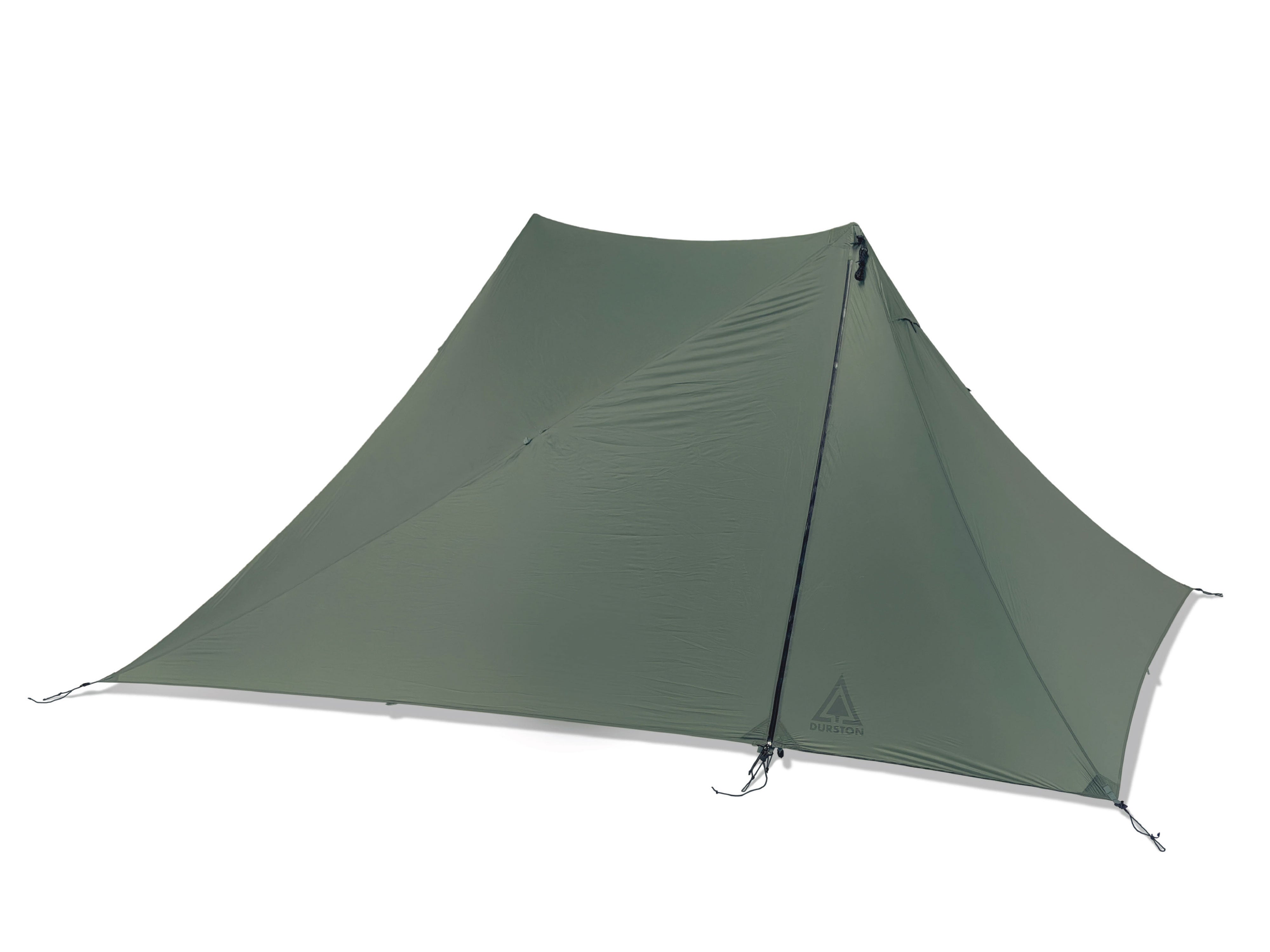

The X-MidTM 2P builds off the widely acclaimed X-Mid 1P design to achieve a spacious 2P tent that is exceptionally well rounded to handle any 3 season conditions.

The X-Mid uses unique and maximally weight efficient geometry and thus provides the greatest performance for the weight of any comparable 2P tent. It is simple, spacious, highly functional and stormworthy for just 36 oz (1025 g). Any 2P shelter that is lighter is substantially smaller, less durable and/or has restricted functionality (e.g. singlewall).

In tough wet conditions, no other tent can boast the X-Mid’s comprehensive defences of a fly first pitch, no sag fabric, large adjustable vents, protected entryways, generous vestibules for wet gear, and double wall protection. The X-Mid 2P also provides a superior user experience with obsessive attention to detail such as one handed operating zippers, and an ultra simple 4-stake pitch.

The X-Mid 2P is developed and sold via a partnership with Drop, who offer it at:

If you aren’t in the market for a tent now but want a notice of future product runs, sign up below.


Concept

The goal with the X-Mid was to start with a clean sheet of paper and reason from there to create the optimal trekking pole supported shelter – one that offers maximal functionality, space, storm resistance and simplicity at the lowest weight.

The most fundamental – and thus first – design question was: What shape should form the tents base? Most trekking pole supported tents are based around hexagons or even more complicated shapes, but as the number of sides increase, so to does pitching complexity, number of seams, stakes and weight. Typically these complex tents require estimates of stake locations, angles, distances between stakes, pole lengths and pole positions. Setting that up can be fun in the backyard, but not fun in a rainstorm. The X-Mid is rooted in the philosophy that simpler is better, and thus eliminates most of this guesswork by opting for a rectangle base – by far the easiest shape to stake out.

The challenge with the rectangle – and the reason why it hasn’t been used more historically – is that it’s hard to implement a good trekking pole structure. Most prior rectangle based tents have been single pole pyramids which are lauded for their simplicity but lack headroom and the single pole in the center typically interferes in the living space or doorways. Other rectangle based designs have used two poles to increase living space, but these having typically been positioned near the perimeter (e.g. an A frame design) which creates overly steep wind-catching walls, adds mandatory guylines and stakes, results in an inefficient use of materials and these poles still typically interfere in the doorways or living area.

Reasoning from first principles, it was obvious that the ideal tent should use two poles to bolster living space since hikers commonly have two poles on hand anyways and it would be a shame not to utilize them, but how to achieve this while avoiding the common pit-falls was a design challenge that resonated in my head throughout my 2014 PCT thru-hike. It resonated again during my 2017 Great Divide Trail thru-hike until I realized a solution to all of these long standing issues with the patent-pending X-Mid layout:

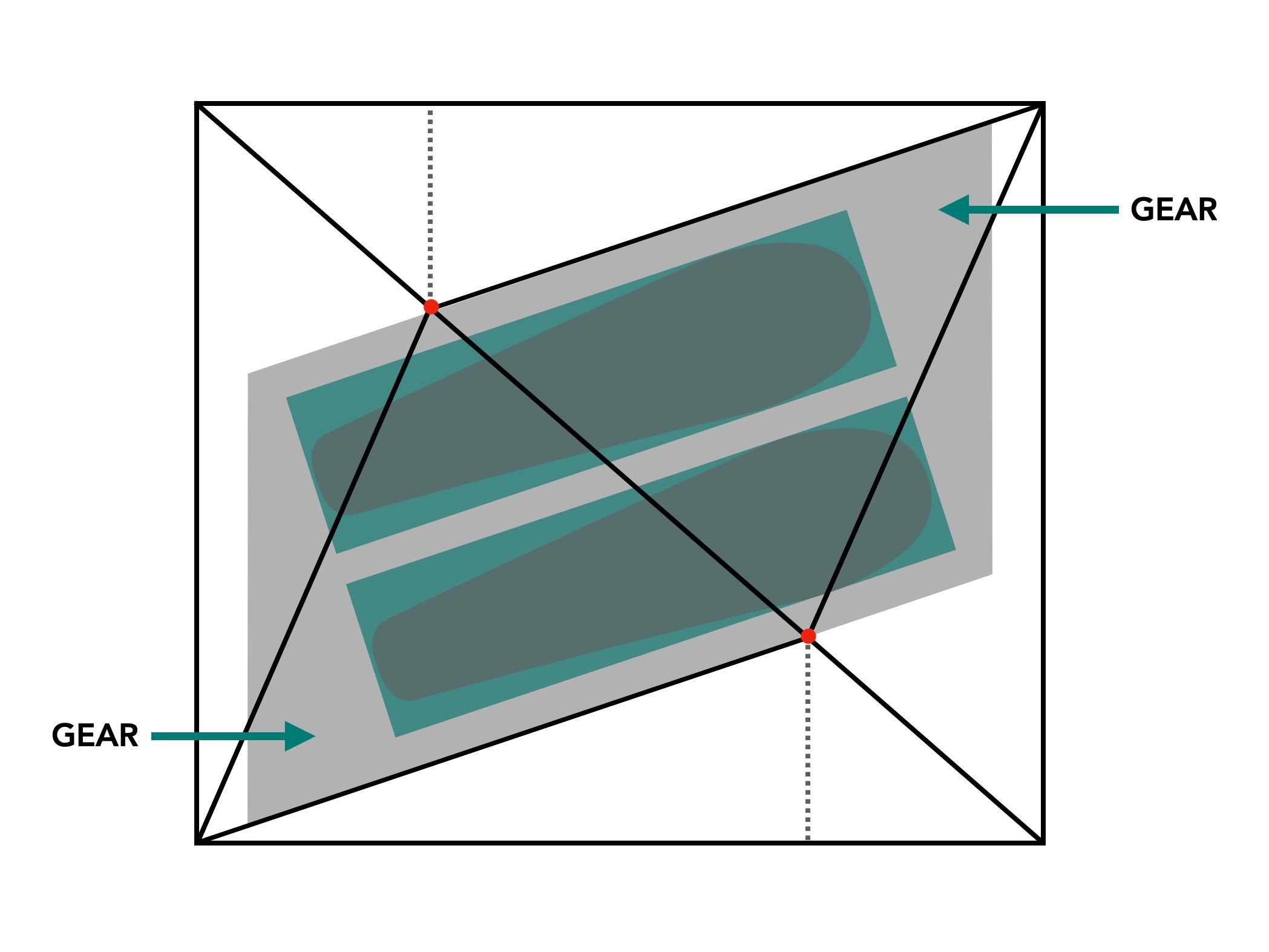

The X-Mid layout starts with the unique idea of placing the sleeping area on a diagonal inside a rectangular fly. This creates vestibules on either side and uniquely allows for two trekking poles to be positioned inward from the edges so it can pitch robustly without guylines (optional ones strengthen it further in storms). Positioned like this, the poles provide abundant living space while being out of the way of the doors and living space, and not complicating the pitch. It’s a spacious shelter that pitches easily with only 4 stakes.

The X-Mid geometry is also lightweight because it is the most volumetrically efficient shape for a trekking pole shelter. If you do the math, you’ll find any other comparably sized trekking pole shelter uses more fabric, stakes or both, resulting in a heavier geometry. Any competing double wall tent as light as the X-Mid is either much smaller, using more delicate fabrics or is quite a bit less fully featured.

The X-Mid also provides outstanding performance in tough conditions. When it’s rainy, the X-Mid is as good it gets due to the fly first pitch, generous living space, large vestibules with space for cooking and wet gear, no sag fabric (polyester), fully taped seams, a double wall design that protects from condensation, entry ways that can be left open in light rain, and large vents that open and close easily to reduce condensation. No other tent can claim that entire list.

The X-Mid is also solid in the wind and snow due to the weather resistant shape, durable materials and additional guyout options. Unlike most tents, the X-Mid geometry results in wall slopes that are both consistent and moderate. Most tents have quite variable wall slopes (e.g. low angle roof panels but steep sides) so there are often low angled roof panels that accumulate snow yet overly steep sides that catch wind. The X-Mid is rare in having consistent panels and importantly, they are all at a moderate slope which balances performance in the wind and snow. In addition to this high performance shape, the tent also buttons down solidly in harsh weather with numerous optional stake out points around the base, vents that quickly shut to block wind and snow, and peak guylines that can be deployed in stormy conditions to further strengthen the shelter.

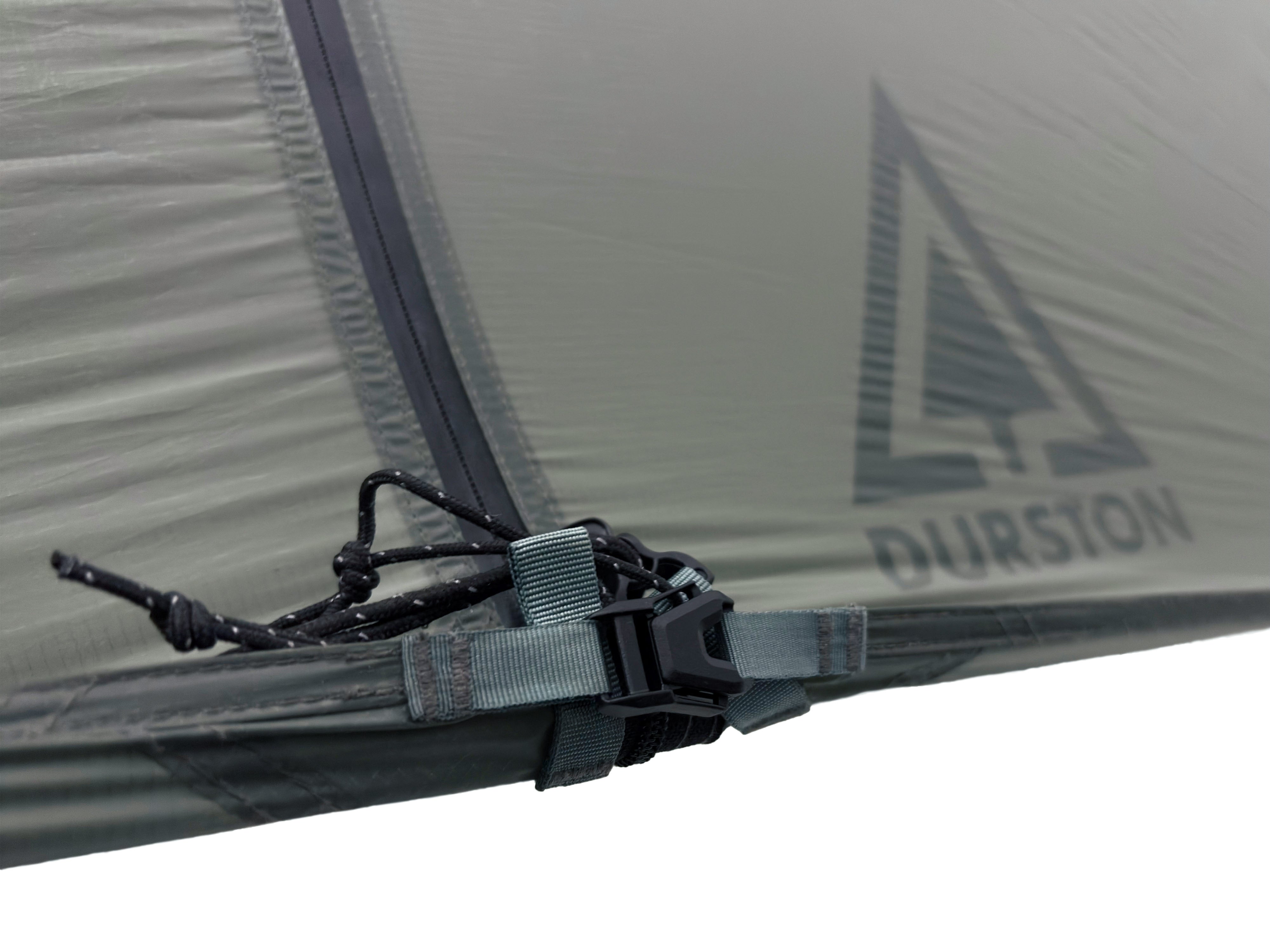

The materials are also up to the task with tough #5 water resistant zippers on the fly (many competing tents use cheaper non-waterproof zippers with flaps that don’t work as well and snag in the zipper, or door clips that are a hassle to use). The X-Mid fabric is a durable 2500mm sil/PU coated ripstop polyester (20 denier) that has been independently tested to verify that it is still highly waterproof after extensive wear. This weight of polyester is the ideal material for a well rounded lightweight tent because it is light, durable and unlike nylon, it doesn’t sag, weaken in wet conditions or degrade with UV exposure.

Overall the X-Mid layout is the optimal design for a trekking pole shelter because it is maximally simple, spacious and lightweight while providing robust weather protection.

Features & Specs

Features / Advantages

  • Ultra simple pitch with just four stakes
  • Fly first pitch so the inner tent stays dry during setup in the rain

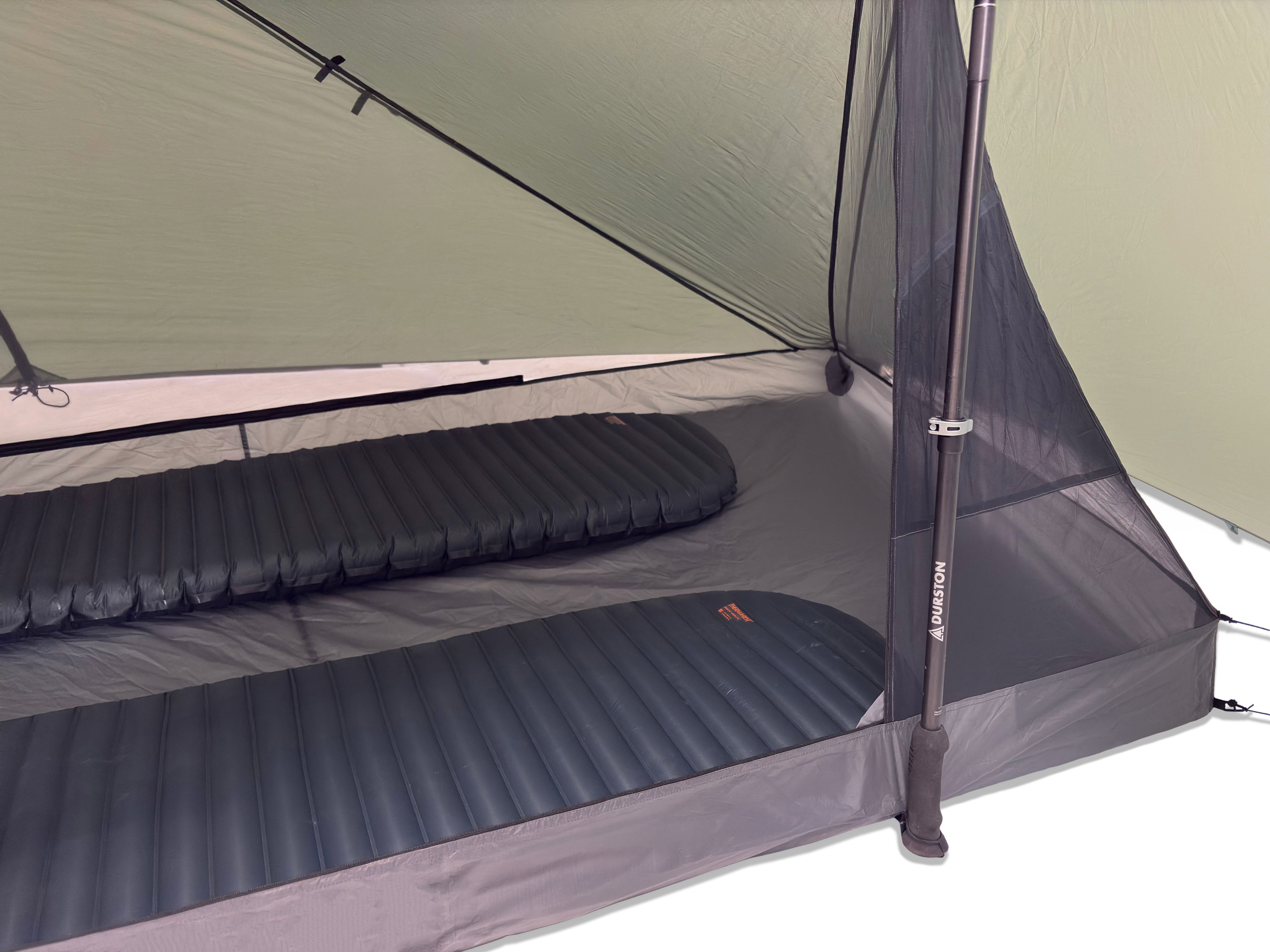

  • Offset twin pole structure provides generous headroom and living space by maximizing the distance between the two poles.
  • Double wall design protects from condensation
  • Dual doors and dual vestibules provide easy access and ample gear space
  • Protected doorways can be left open in light rain

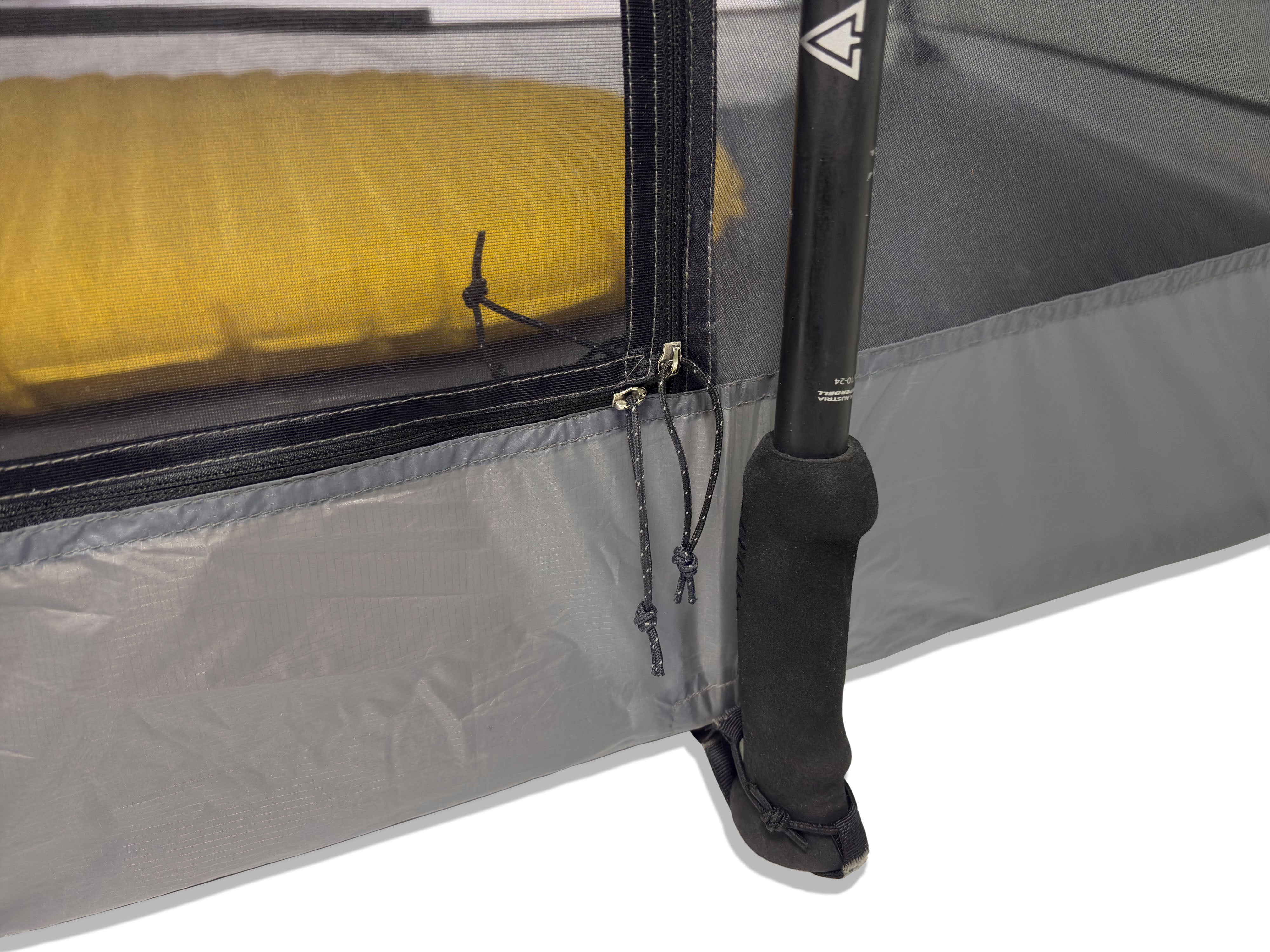

  • Doorways are large and not blocked by trekking poles like many designs
  • Polyester fabric doesn’t sag in the rain
  • Polyester fabric doesn’t absorb water, so it is fast dry and stays light

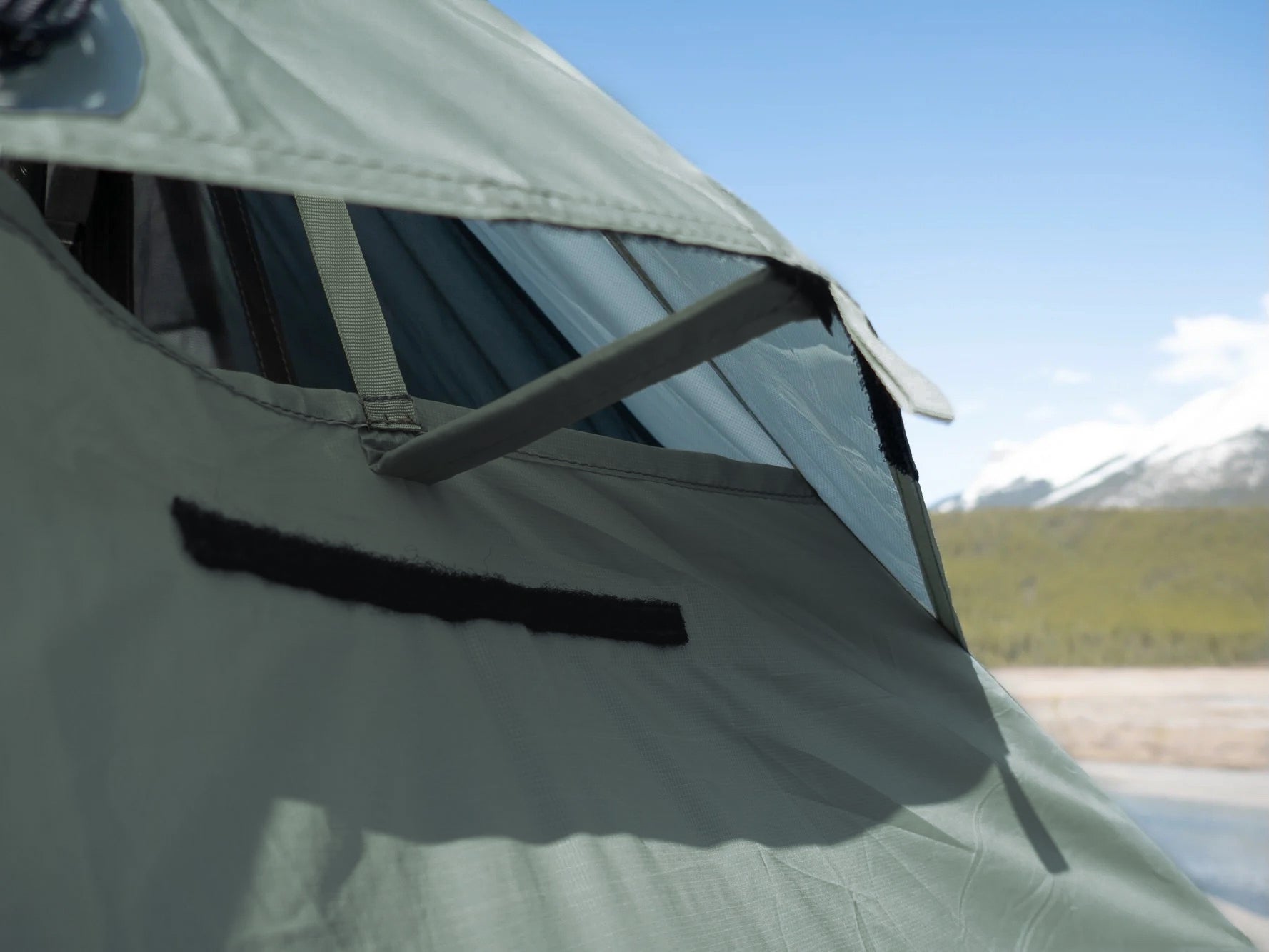

  • Large vents provide minimize condensation and close easily during harsh conditions
  • Excellent snow shedding via steep roof panels
  • Excellent high wind performance via even load distribution on the stakes, optional peak guylines, and additional hem stakeout points.

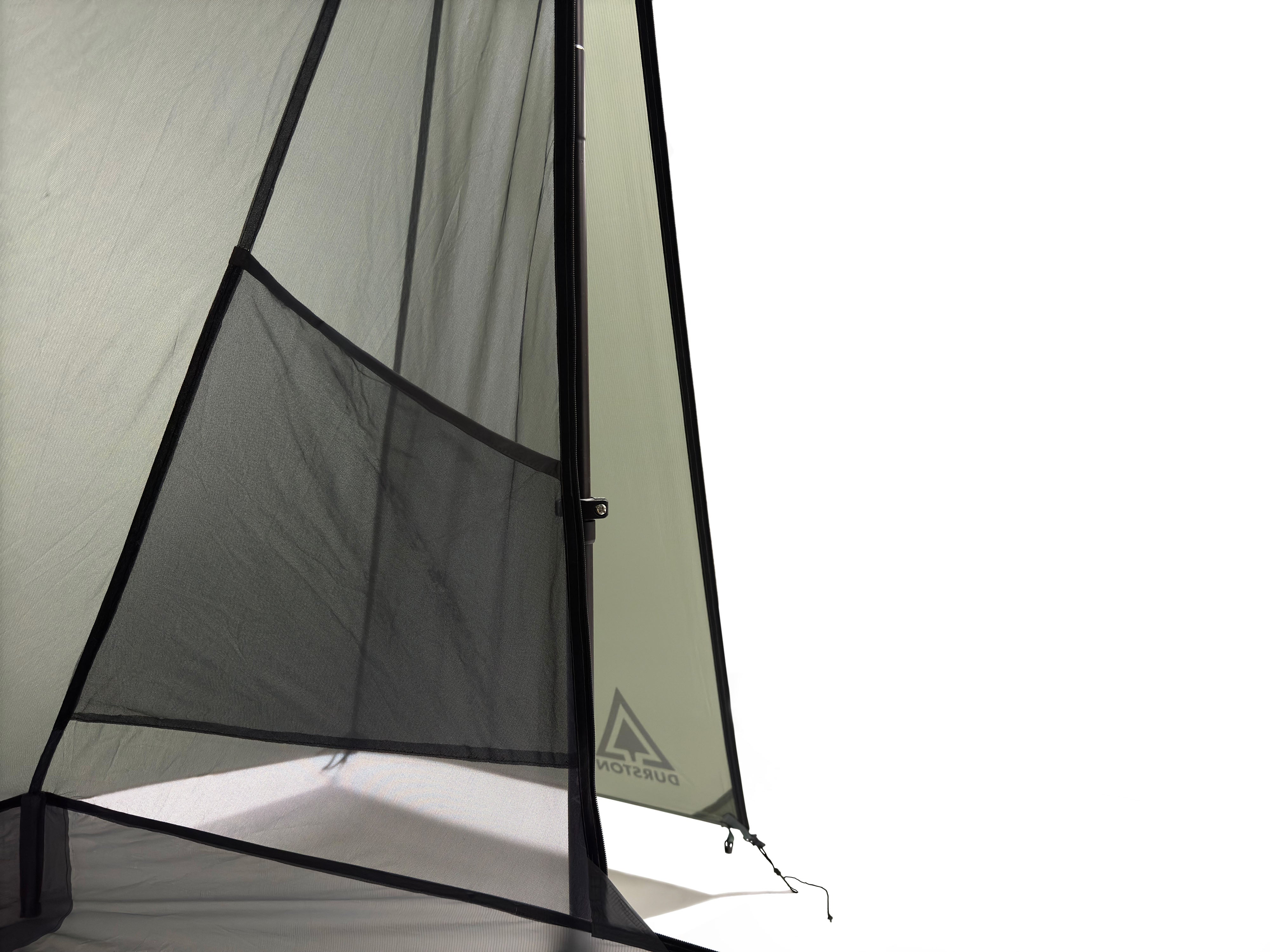

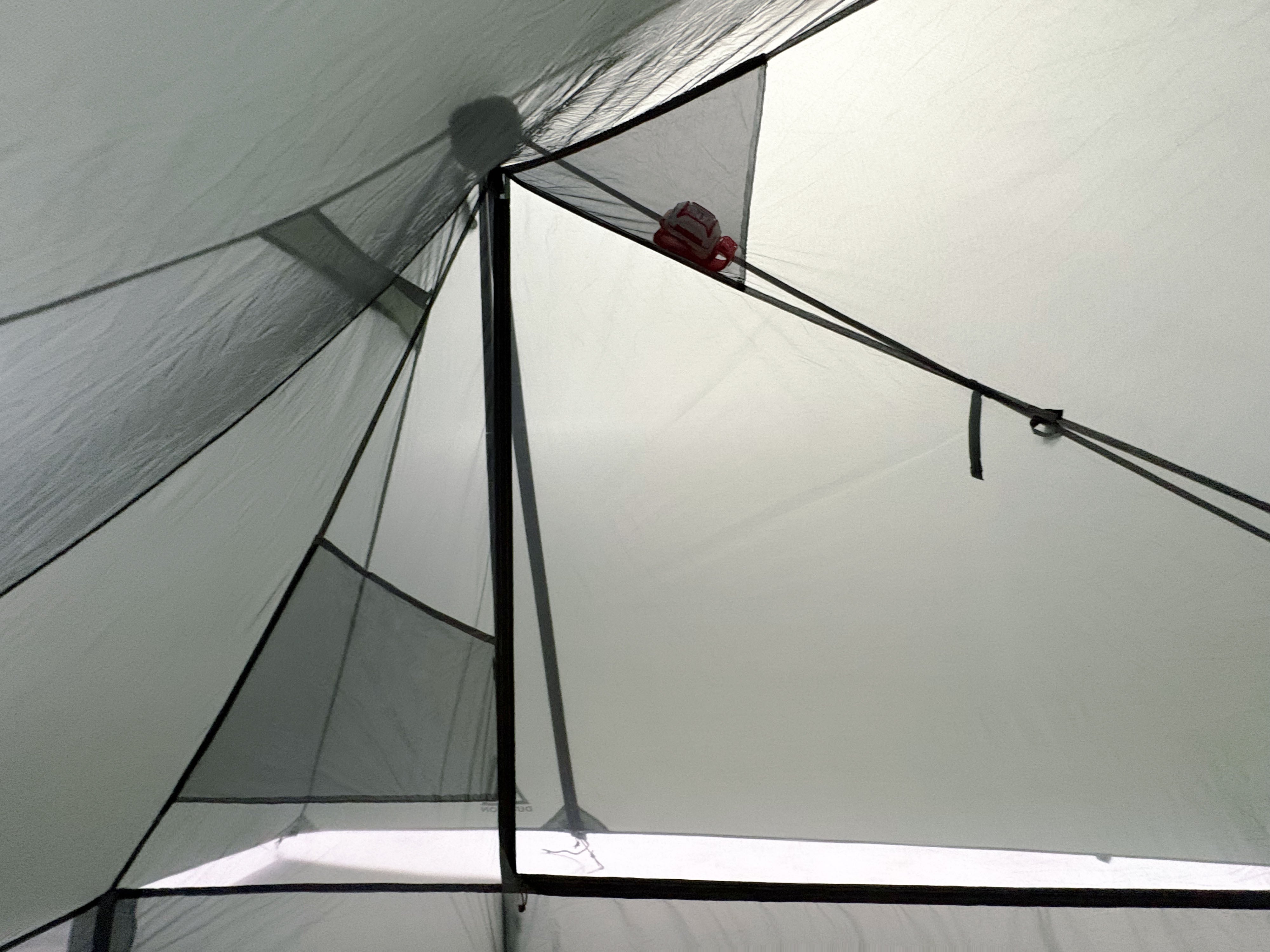

  • Four interior pockets
  • Full coverage fly extends to the ground to block drafts yet can be raised for more ventilation
  • Packs short enough to store horizontally in a pack
  • Fly and inner can pitch separately
  • Fully seam taped
  • Non-slippery floor
  • Premium materials and hardware (e.g. YKK AquaGuard Zippers)

Weight

  • Fly: 21 oz / 600 g
  • Inner: 15 oz / 425 g
  • Complete Tent (Fly + Inner): 36 oz / 1025 g
  • Stuff sack: 0.5 oz / 14 g
  • Stake sack: 0.2 oz / 4 g
  • Stakes: 0.3 oz/ 8 g each (8 included)
  • Typical setup: 38.5 oz / 1090 g (tent, stuff sacks, 6 stakes)

Materials

  • 20 denier 420 thread-count 100-percent polyester in desert sage
  • 2000mm sil/PEU coating
  • Peak reinforced with 210d black nylon
  • YKK #5 AquaGuard (water resistant) zippers (fly)
  • YKK #3 zippers (inner tent)
  • Eight titanium shepards hook stakes
  • Made in Vietnam (same premium factory as MSR, Mountain Hardwear etc)

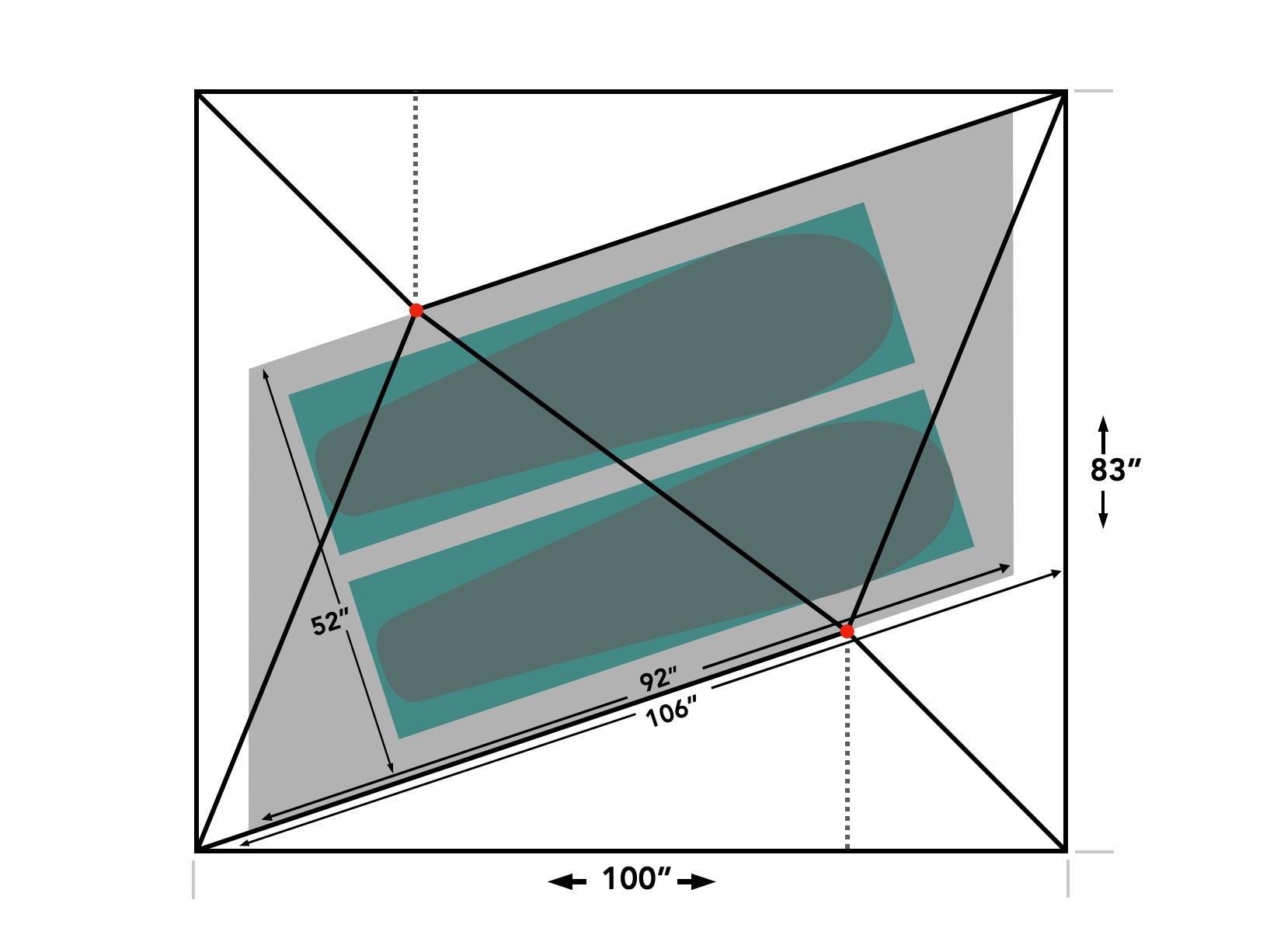

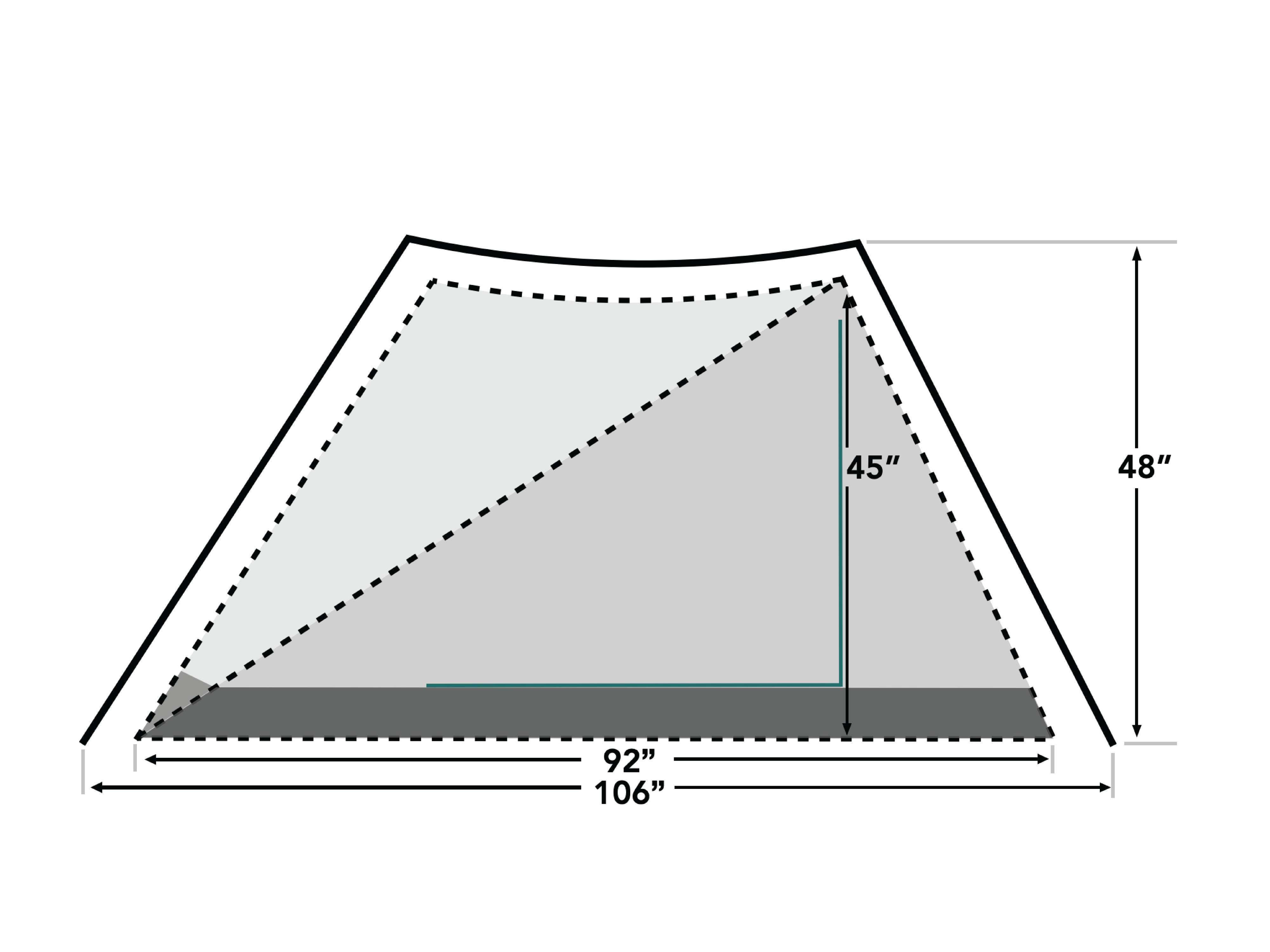

Dimensions

  • Fly: 88 x 102 in / 224 x 259 cm
  • Fly area: 63 sq ft / 5.85 sq m
  • Fly peak height: 47 in / 119 cm
  • Inner peak height: 44 in / 114 cm
  • Floor width: 50 in / 127 cm
  • Floor length: 92 in / 233 cm
  • Floor area: 32 sq ft / 3.0 sq m
  • Packed size: 12 x 6.5 in / 30 x 17 cm

FAQ

Q) The X-Mid 2P doesn’t seem lighter than UL tents offered by mainstream companies with traditional poles.
A) There are tents with traditional pole sets that are lighter than the X-Mid, such as the Big Agnes Tiger Wall UL2 (35 oz). Since pole sets are heavy (often about 10oz) to get the tent that light something has to give. Commonly that’s space and durability, where a traditional tent as light as the X-Mid is almost certainly far smaller and uses more delicate fabrics and much thinner waterproof coatings. In the case of the Tiger Wall UL2, that accomplished through giving up a lot of durability (e.g. 10D fabrics, #3 zippers), cutting useful features like vents, and making it smaller (e.g. tapering the floor to 42″ at one end). By using your trekking poles and efficient geometry, for a similar weight the X-Mid 2P offers more interior volume, higher performance/water capability, and more durable fabrics, zippers and coatings. Instead of a decline tent for more docile conditions, the X-Mid 2P is a nicely sized 2P tent with legitimate foul weather capability.

Q) Can I pitch just the fly or inner?
A) Yes. The inner easily disconnects via buckles at the peaks and clips at the four corners. So you can easily remove the inner to pack it up separately or to pitch only the fly. If you want to pitch only the inner, you will need to remove the guylines off the fly peaks and tie them to the inner peaks.

Q) I don’t use trekking poles. What can I do?
A) If you use one or no trekking poles, you can use folding poles instead. We don’t currently offer them but many companies do. The X-Mid 2P pitches with the poles at 47″, so if you buy a fixed length pole you should opt for 47-48″ and just use that slightly angled as needed. The best option is a custom, 5 piece, adjustable carbon fiber pole from Ruta Locura but there are also cheaper options, such as the $16 poles from TarpTent.

Q) Why polyester over nylon?
A) The main reason is that nylon absorbs water in wet conditions. That results in 3 big problems: First, it expands (or “sags”) about 4% making the fly slack which looks and performs poorly. Second, water absorption by nylon makes the tent slow to dry and heavy with up to a pound of water soaked into the fabric, and third, nylon weakens by about 10% when wet. Polyester doesn’t absorb water so it doesn’t have any of these issues.

While nylon is a bit stronger, this difference in strength is commonly overstated because it is only 15-20% and nylon immediately loses about 10% of its strength when wet (unlike poly). Then nylon further degrades much faster during UV exposure, so a year or two down the road, polyester is likely the stronger material. With the X-Mid leading the way, polyester is taking over. Numerous tent companies have followed suit over the last year or two such as Black Diamond, Lightheart Gear, Six Moon Designs, TrekkerTent and others.

Q) Why aren’t you using DCF/cuben fiber?
A) The dyneema fibers in DCF are undoubtably super strong, but DCF as a material is not more durable than 20D polyester because the outer mylar layers handle abrasion poorly, and it can delaminate due to torsion or folding. Claims about it being “bombproof” are misleading. The dyneema fibers are, but the composite material is not. It has a lifespan about half that of a nylon or polyester tent. Other disadvantages are that it is quite bulky (the packed size is about 50% greater) and it sheds snow poorly because it sticks.

The only notable advantage of DCF over polyester – and it is a big advantage – is that it is much lighter at typically 0.5oz/sq yd rather than 1.2oz/sq yd typically. This can make for a much lighter tent, but also much more expensive and less durable, so your cost per night is several times higher. Polyester is a better choice for a well rounded tent, while DCF makes sense for bleeding edge UL tents.

Eventually we may offer a DCF version of the X-Mid that is fantastically light, but if that happens it will be much more of a specialized shelter. It will compromise in many ways to be as light as possible (smaller zippers, fewer vents, single wall etc). Thus the poly version will always be the well rounded version that is the best choice for most folks, while the DCF version will be a more specialized tent for folks that want the lightest gear and are willing to sacrifice some durability, features and expense to get that.

Q) How should I pitch it in stormy weather?
A) For the most weather resistant pitch, you should pitch it low to the ground (shorten the cord at the corners as much as possible), use the optional stake out points around the base to spread the load and deploy the peak guylines. Orient the guylines towards the long sides of the tent to support those larger walls. For extreme conditions, you can add a second peak guyline by tying cord inside the peaks and running it out the vents. This way you can guyout each peak from two directions, which makes it extremely strong.

Q) How does the X-Mid compare to [some competing tent]?
A) The X-Mid geometry is the most volumetrically efficient shape possible because it has been designed from the first principles of physics and geometry. Thus it is not possible to make a lighter tent unless you use lighter materials, reduce features or make it smaller. If you find a lighter tent, it likely is a single wall design that isn’t nearly as good in sloppy conditions or it uses DCF fabric and thus costs at least 2.5x as much.

Any tent that uses similar materials and is also a double wall is normally quite a bit heavier. Of the few tents that are not, these are always smaller, less featured or both. We could make the X-Mid smaller or less featured too, but its current design is carefully considered so that it is among the lightest tents in its class while still offering a comfortable amount of space and useful feature set. The weight is similar to the lightest woven double wall tents out there, while offering more space and features. To save another two ounces would require large compromises in function or durability, such as hard to use door clips instead of zippers, smaller or omitted vents, and delicate hardware. Tents that make these compromises are much less well rounded.

Q) How can I repair my X-Mid?
A) The X-Mid uses polyester fabric for the fly and floor, with a silicone coating on the outside and a PEU coating on the inside. Thus, different products adhere differently to the inside and outside.

For small holes or cuts, you can seal the tent on the outside using clear silicone caulk, such as GE Silicone II. You can buy small tubes that don’t require a caulking gun.

For larger repairs, first close the wound by sewing it shut or using tenacious tape. Tenacious tape will stick well to the inside of the fabric and will last permanently if it’s applied to clean fabric (wipe with alcohol). The sage color matches the X-Mid remarkably well. With either sewing or tape, you may wish to also seal the outside with silicone to ensure it is waterproof and to add strength. If you sewed it shut, it is best to dilute the silicone cault 3:1 with mineral spirits to create a thinner slurry that will soak into the stitching.

It is also possible to create patches of the fly material by pirating some from the stake stuff sack and adhering it to the outside (with silicone) or to the inside (with SeamGrip) but there is little reason to do this since tenacious tape on the inside accomplishes something similar.

Pitching

Download Setup Instructions

Reviews

Unlike many outdoor companies, we accept all user reviews without “editing”, “approving” or “curating” them to hide the negative ones and boost the average rating.

Over on Drop.com there are now over 125 reviews of the X-Mid 2P that are real and unfiltered. These reviews average 4.9/5 stars, which is exceptionally hard to achieve without cheating. To date, 117 of 128 reviews are 5 star and 9 more are 4 star. The only 2 reviews below 4 stars pertain to issues with shipping, not the product itself, so real users are unanimous in rating this product as exceptional.

“You won’t find another tent that so elegantly optimizes weight, space, and features”

“This might be the best designed tent ever made…everything else is now essentially obsolete”

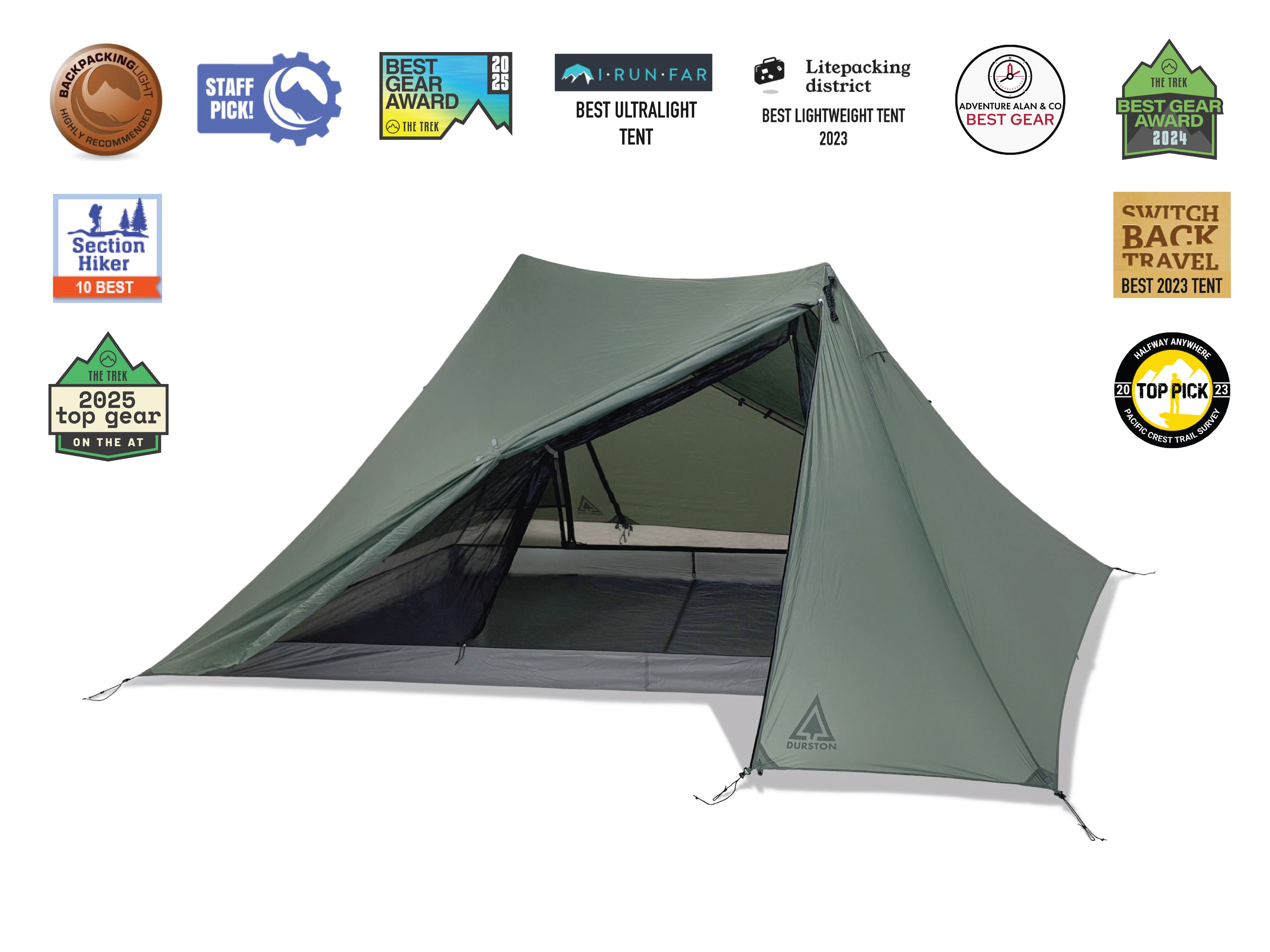

The X-Mid 2P has also been consistently praised by media outlets and external reviews:

“A winning combination of low cost, low weight, a ton of livable area and great condensation control.”
